Traffic Pattern

In this paragraph, you will obtain and calculate the above information, per the above example, to be used for Landing.

Task:

1. Calculate the following:
   • Downwind Leg: Multiply Runway Number by 10, and add 180 Degrees.
   • Base Leg: Multiply Runway Number by 10, and add/subtract 90 Degrees.
   • Final Leg: Multiply Runway Number by 10.

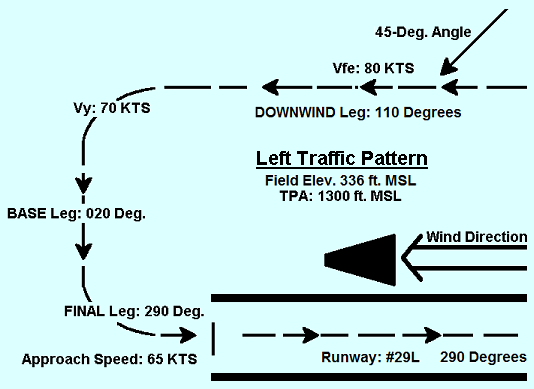

   The Traffic Pattern will look as follows.

   Where:

   • 45-Degree Angle: Entry into Traffic Pattern
   • Approach Speed: 65 KTS
   • Base Leg: 020 Degrees
   • Downwind Leg: 110 Degrees
   • Field Elev.: Field Elevation: 336 Feet MSL
   • Final Leg: 290 Degrees
   • Left Traffic Pattern
   • Runway: Runway Number 29L
   • TPA: Trafffic Pattern Altitude: 1300 Feet MSL
   • Vfe: Flap Extended Speed: 80 KTS
   • Vy: Best Rate-of-Descent Speed: 70 KTS
